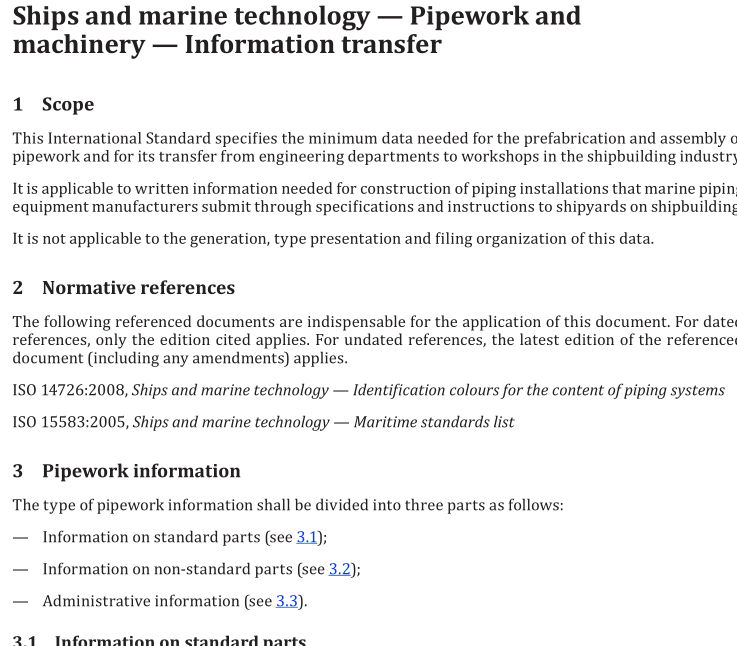

ISO 8277 pdf download Ships and marine technology — Pipework and machinery — Information transfer
Scope
This International Standard specifies the minimum data needed for the prefabrication and assembly ofpipework and for its transfer from engineering departments to workshops in the shipbuilding industry
lt is applicable to written information needed for construction of piping installations that marine pipingequipment manufacturers submit through specifications and instructions to shipyards on shipbuilding
t is not applicable to the generation, type presentation and filing organization of this data
2 Normative references
The following referenced documents are indispensable for the application of this document. For datedreferences, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
SO 14726:2008, Ships and marine technology – ldentification colours for the content of piping systemsISO 15583:2005, Ships and marine technology — Maritime standards list
3 Pipework information
The type of pipework information shall be divided into three parts as follows:
Information on standard parts (see 3.1);
Information on non-standard parts (see 3.2);
Administrative information (see 3.3).
3.1 Information on standard parts
