ISO 6462 pdf download Face and shoulder milling cutters with indexable inserts — Dimensions

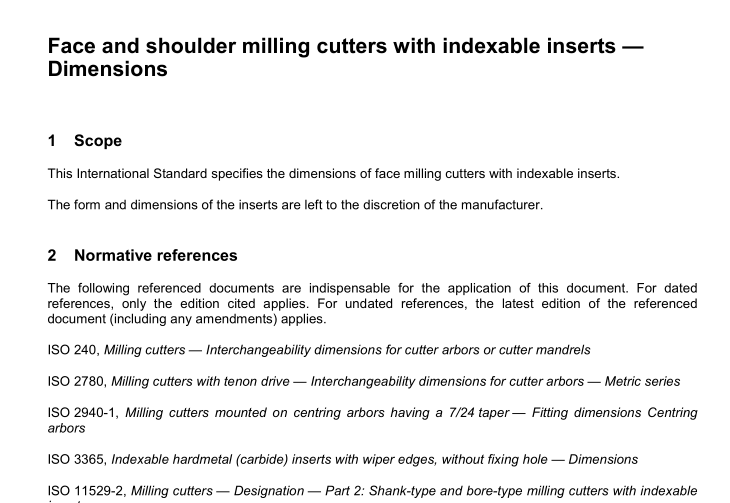

1 Scope
This International Standard specifies the dimensions of face milling cutters with indexable inserts.
The form and dimensions of the inserts are left to the discretion of the manufacturer.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 240, Milling cutters — Interchangeability dimensions for cutter arbors or cutter mandrels
ISO 2780, Milling cutters with tenon drive — Interchangeability dimensions for cutter arbors — Metric series
ISO 2940-1, Milling cutters mounted on centring arbors having a 7/24 taper — Fitting dimensions Centring arbors
ISO 3365, Indexable hardmetal (carbide) inserts with wiper edges, without fixing hole — Dimensions
ISO 11529-2, Milling cutters — Designation — Part 2: Shank-type and bore-type milling cutters with indexable inserts
3 Style
Milling cutters with indexable inserts shall have cutting edge angles, κ r , of 45°, 60°, 75° and 90° and the following styles:
⎯ style A with tenon drive and hexagon socket head cap screw;
⎯ style B with tenon drive and cutter retaining screw with interchangeability dimensions in accordance with ISO 2780;
⎯ style C mounted on centring arbor having a 7/24 taper with interchangeability dimensions in accordance with ISO 2940-1.
NOTE 1 Cutting edge angles other than those listed in this clause are optional as long as they fit into the designation system according to ISO 11529-2.
NOTE 2 The abbreviated terms for the dimensions are taken from ISO/TS 13399-3.
