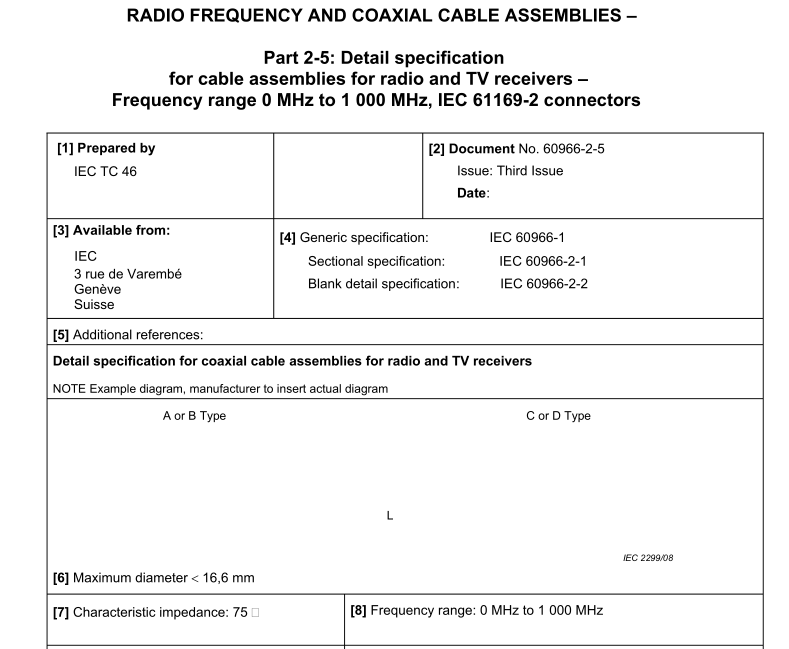

IEC 60966-2-5 pdf download Radio frequency and coaxial cable assemblies – Part 2-5: Detail specification for cable assemblies for radio and TV receivers – Frequency range 0 MHz to 1 000 MHz, IEC 61169-2 connectors
This detail specification applies to flexible coaxial cables described in lEC 60096-2. lt relatesto cable assemblies for radio and TV receivers,and in particular to the cable assembliessubfamily 9,52.(IEC 61169-2).
This detail specification gives subfamily requirements and severities which shall be applied.
Under qualification approval, the qualification will be conducted in accordance with 12.2 ofIEC 60966-2-1 taking into account the specified variants. Only the tests whose results mightdepend on the variants will be repeated.
Under capability approval, the qualification will be conducted on the relating CQCs as definedin 12.3 of lEC 60966-2-1 and described in the CM.Unless otherwise specified in the CM, onlylot-by-lot tests from groups Ba and Eb will be conducted on delivered products, all other testswill be performed on cQCs as defined in 12.3 of lEC 60966-2-1 and described in the CM.
Reference documents
IEC 60966-1:1999, Radio frequency and coaxial cable assemblies – Part 1: Genericspecification – General requirements and test methods
IEC 60966-2-1:2008, Radio frequency and coaxial cable assemblies – Part 2-1: Sectionalspecification for flexible coaxial cable assemblies
IEC 60966-2-2:2003,Radio frequency and coaxial cable assemblies – Part 2-2: Blank detailspecification for flexible coaxial cable assemblies
IEC 61169-2,Radio-frequency connectors – Part 2:Sectional specification – Radio frequencycoaxial connectors of type 9,52
IEC 61196-6,Coaxial communication cables – Sectional specification for CATV drop cables
IEC62153-4-3, Metallic communication cable test methods – Part 4-3:Electromagneticcompatibility (EMC)-Surface transfer impedance – Triaxial method
