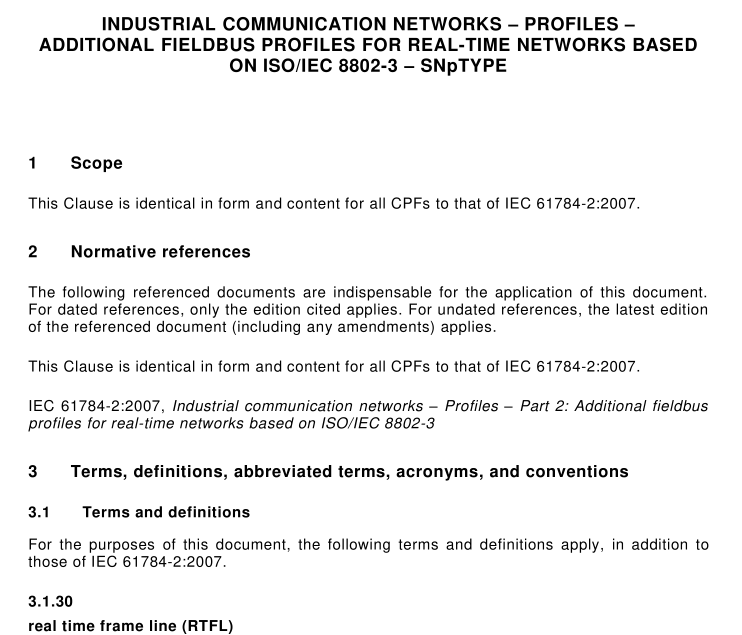

DD IEC PAS 62633 pdf download INDUSTRIAL COMMUNICATION NETWORKS – PROFILES – ADDITIONAL FIELDBUS PROFILES FOR REAL-TIME NETWORKS BASED ON ISO/IEC 8802-3 – SNpTYPE
This Clause is identical in form and content for all CPFs to that of lEC 61784-2:2007.
2Normative references
The following referenced documents are indispensable for the application of this document.For dated references,only the edition cited applies.For undated references, the latest editionof the referenced document (including any amendments) applies.
This Clause is identical in form and content for all CPFs to that of lEC 61784-2:2007.
IEC 61784-2:2007，Industrial communication networks – Profiles – Part 2: Additional fieldbusprofiles for real-time networks based on lSO/IEC 8802-3
3Terms, definitions, abbreviated terms, acronyms,and conventions3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply，in addition tothose of IEc61784-2:2007.
3.1.30
real time frame line (RTFL)
communication model for communication with high real time requirements
3.1.31
real time frame network (RTFN)
communication model for communication with low real time requirements3.2Abbreviated terms and acronyms
The following additional abbreviated terms and acronyms for CPF SNpFAMILY apply，inaddition to those of IEC61784-2:2007.
RTFL
Real time frame line
RTFN
Real time frame network
3.3 Symbols
The following additional subclause for the symbols of the new CPF SNpFAMILY applies, in addition to those of IEC 61 784-2:2007.
3.4 Conventions
This Subclause is identical in form and content for all CPFs to that of IEC 61 784-2:2007.
4 Conformance to communication profiles
This Clause is identical in form and content for all CPFs to that of IEC 61 784-2:2007.
5 RTE performance indicators
This Clause is identical in form and content for all CPFs to that of IEC 61 784-2:2007.
6 Conformance tests
This Clause is identical in form and content for all CPFs to that of IEC 61 784-2:2007.
7 Communication Profile Family SNpFAMILY (SafetyNET p 1 ) – RTE communication profiles
7.1 General overview Communication Profile Family SNpFAMILY defines profiles based on IEC/PAS 61 1 58-3-22 through IEC/PAS 61 1 58-6-22. In this part of IEC 61 784, the following communication profiles are specified for CPF SNpFAMILY.
• Profile SNpFAMILY/1 This profile defines protocol and service selection for devices which utilize the communication model real time frame line (RTFL).
• Profile SNpFAMILY/2 This profile defines protocol and service selection for devices which utilize the communication model real time frame network (RTFN).
